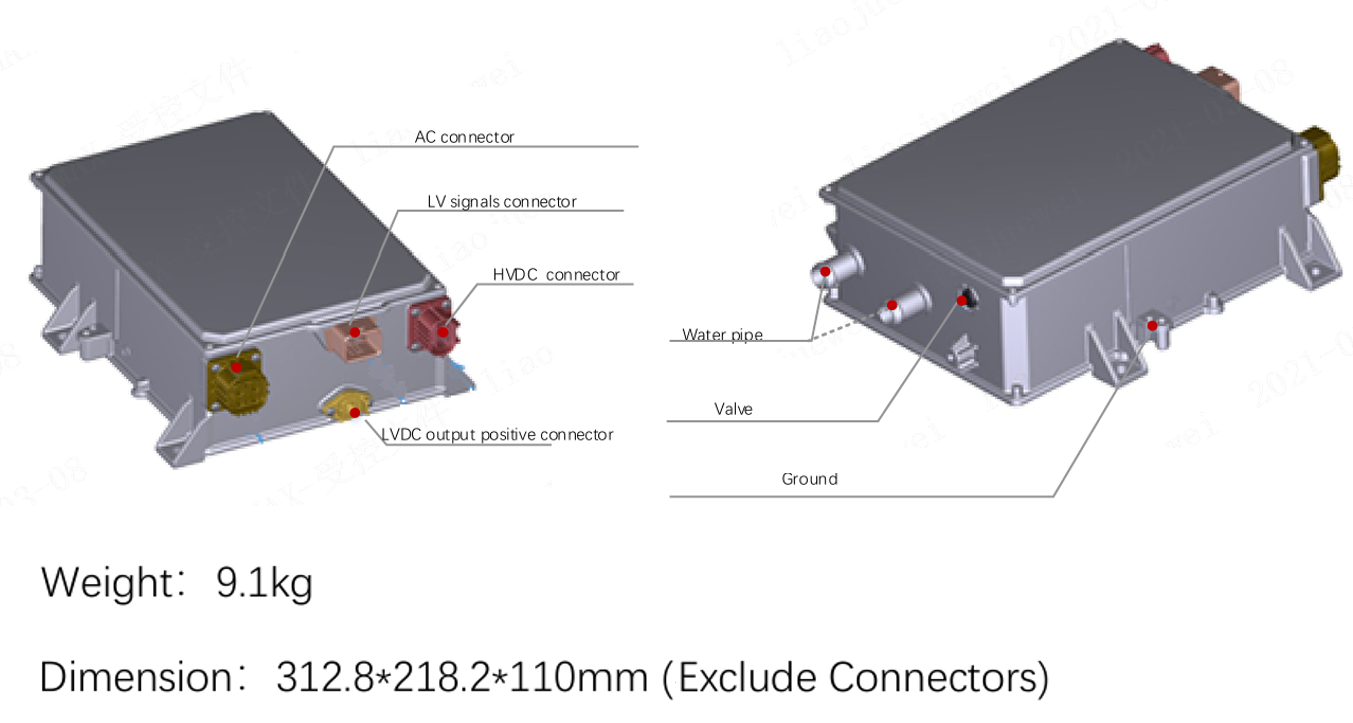

・OBC
technical parameters
|
Input
voltage range
| 90~264
Vac @ 1φ, 184~456 Vac @ 3φ
|
Rated
input voltage
| 230
Vac @ 1φ, 380 Vac @ 3φ
|
Input
frequency range
| 45~65
Hz
|
Max
input current
| 32
A @ 1φ, 16 A @ 3φ
|
Power
Factor
| ≥
0.99 @ Rated input and output
|
Output
voltage range
| 200
~ 450 Vdc
|
Rated
output voltage
| 350
Vdc
|
Max
output current
| 22
A @ 1φ, 31 A @ 3φ
|
Output
voltage accuracy
| ≤
±1%
|
Output
current accuracy
| ≤
±3% @ > 10 A, ≤ ±0.3% @ < 10 A
|
Output
voltage ripple coefficient
| ≤
±5%
|
Max
output power
| 6.6
kW @ 1φ, 9.9 kW @ 3φ
|
Efficiency
| 93.5%
@ 1φ, 65% @ 3φ
|
・DCDC technical parameters
|
| Input voltage range | 200 ~ 450 Vdc
|
Rated input voltage
| 350 Vdc |
| Max input current | 12 A |
| Output rated voltage | 9 ~ 16 Vdc |
| Rated output voltage | 14.5 Vdc |
| Rated output current | 172.5 A continuous |
| Rated output power | 2.5 kW continuous |
| Efficiency | 92% @ Rated
input and output |
| Output voltage accuracy | ≤ ±1% |
Output voltage ripple coefficient
| ≤ 500 mV @ 20 MHz
|
Output voltage overshoot
| ≤ 5% @ Vout
|
・DCAC
technical parameters
|
Input
voltage range
| 300
~ 450 Vdc
|
Ouput
voltage
| 220
Vac (±5%)
|
Output
frequency range
| 50
Hz (±2%)
|
Rated
output power
| 3.3
kVA max
|
Efficiency
| ≥
93%
|
・Environmental
performance
|
Operating
temperature
| -40 ~ 85 ℃
|
Storage
temperature
| -40 ~ 105 ℃
|
Humidity
| 5% ~ 95% (no condensing, no frost)
|
Cooling
method
| Liquid cooling
|
Cooling
nozzle
| 20mm
|
Liquid
requirement
| 50%
water and 50% glycol
|
Coolant
rate
| ≥ 6
L/min
|
Altitude
| 5000
m
|
IP
class
| IP67
|
